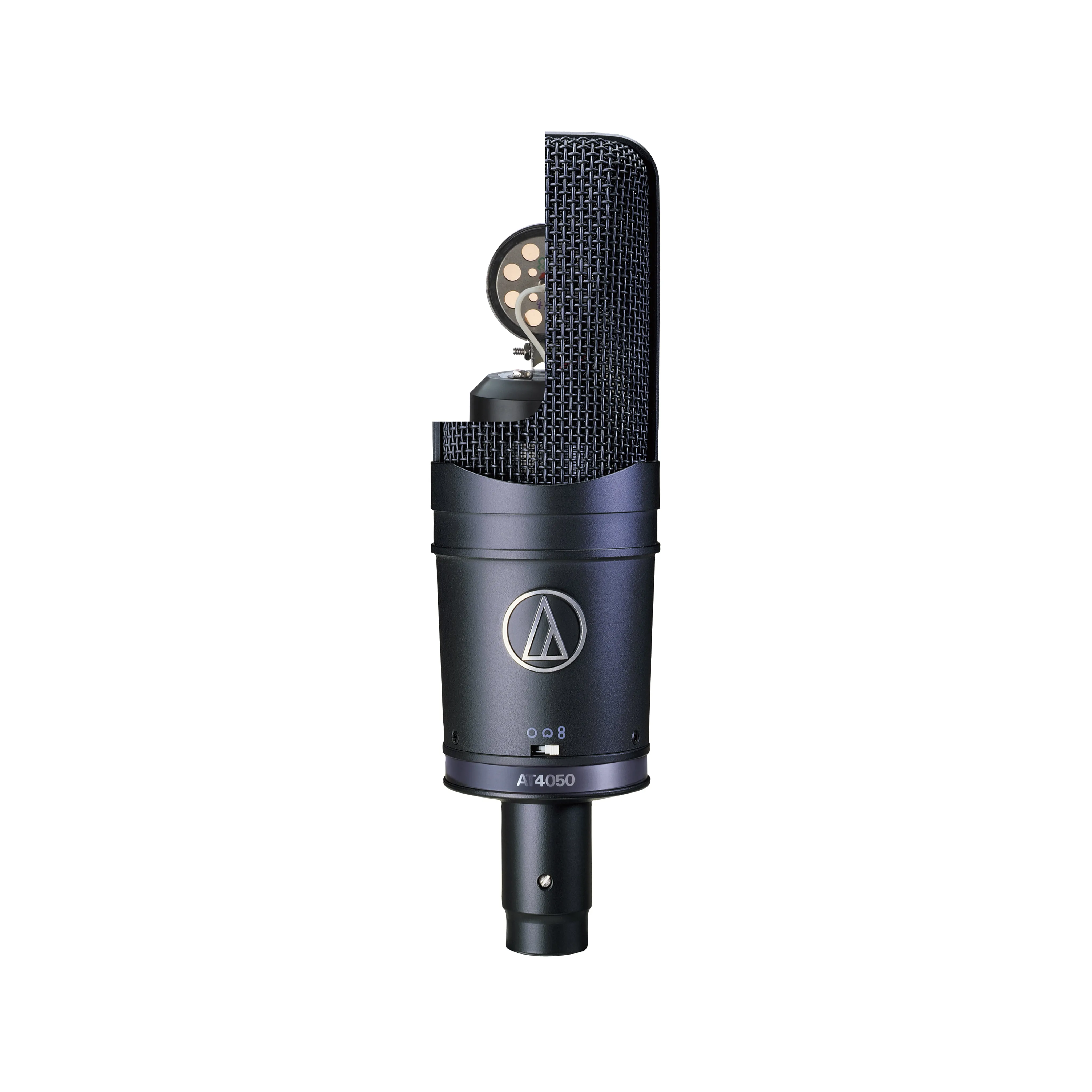

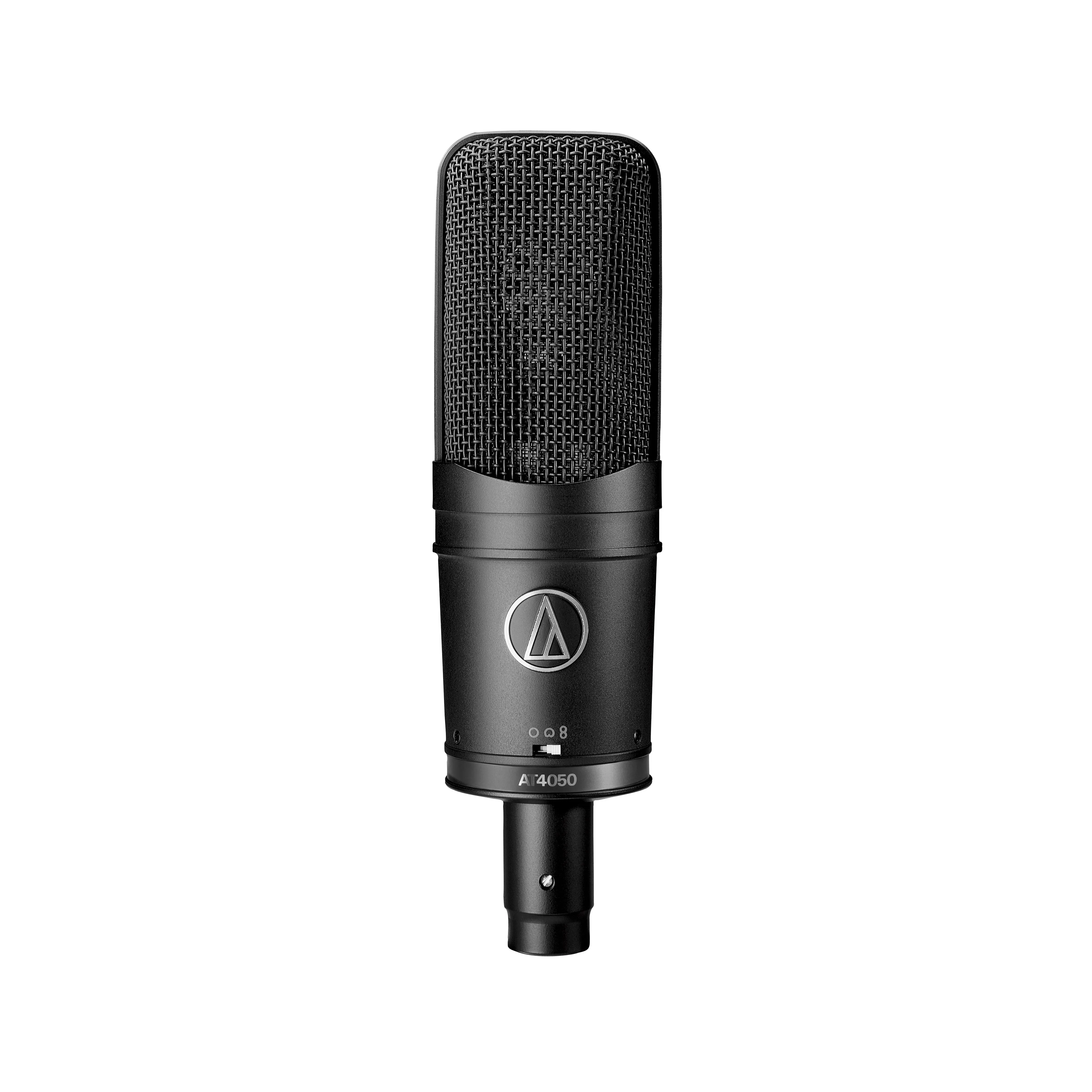

Meet the Audio-Technica AT4050 studio condenser that captures every nuance. With three switchable polar patterns, the large-diaphragm Audio-Technica AT4050 exhibits a remarkable combination of qualities: high-SPL capability with transparent and airy uppers/mids complemented by rich low-end qualities. Its dual large diaphragms are gold-vaporized and aged for consistent, outstanding performance. A precision-machined, nickel-plated brass acoustic element baffle provides rock-solid element stability and exceptional sensitivity.
Features:
- Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- The 2-micron-thick, vapour-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
- Three switchable polar patterns: omni, cardioid, figure-of-eight
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
- Switchable 80 Hz hi-pass filter and 10 dB pad

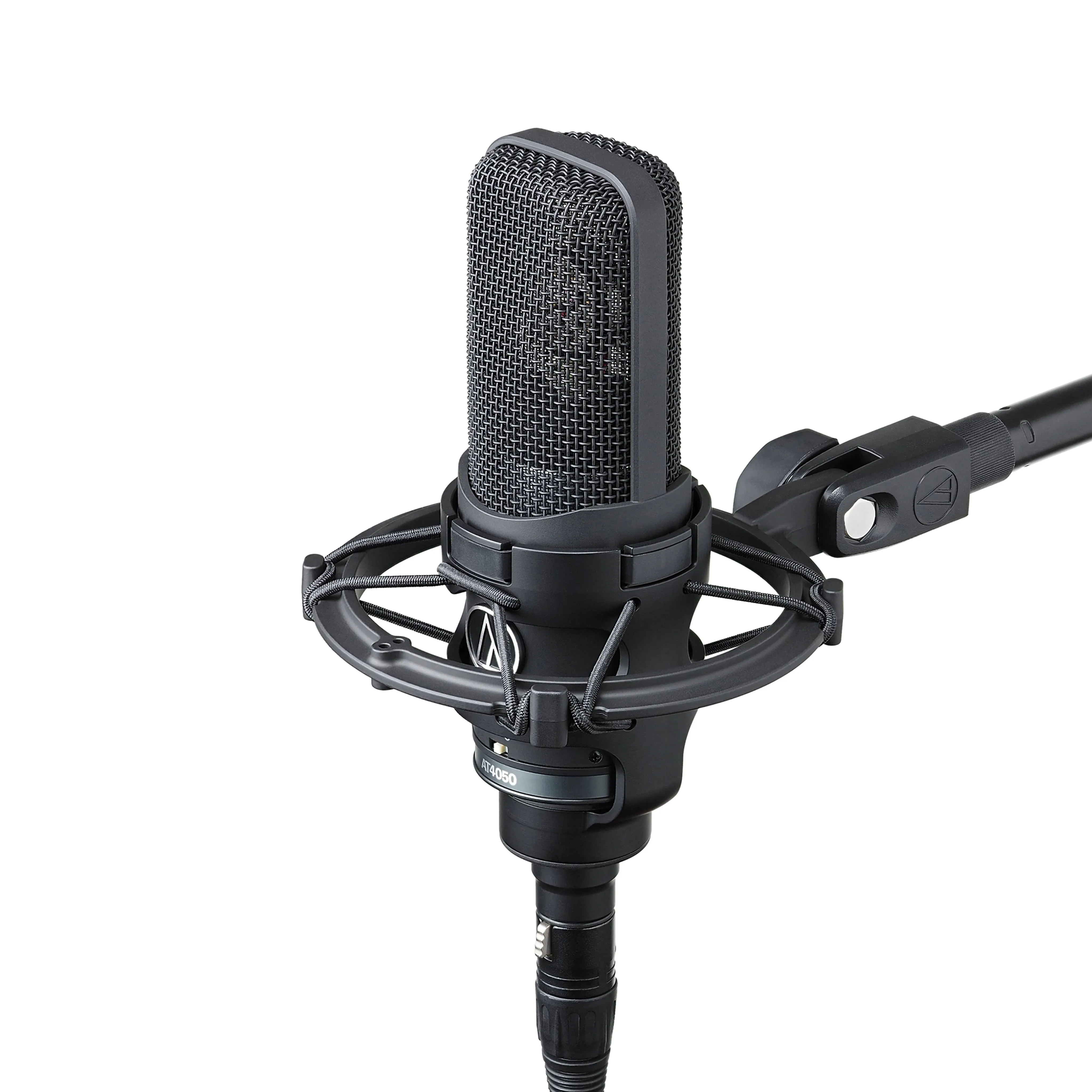

- Custom shock mount provides superior isolation
Specifications:
- Element: Externally-polarized (DC bias) condenser
- Polar Pattern: Cardioid, Omnidirectional, Figure-of-eight
- Frequency Response: 20-18,000 Hz
- Low Frequency Roll-Off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa
- Impedance: 100 ohms
- Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
- Noise: 17 dB
- Dynamic Range (typical): 132 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 77 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 4.2 mA typical
- Switches: Polar selection; Flat, roll-off; 10 dB pad (nominal)
- Weight: 18.0 oz (510 g)
- Dimensions: 7.40" (188.0 mm) long, 2.10" (53.4 mm) maximum body diameter
- Output Connectors: Integral 3-pin XLRM-type

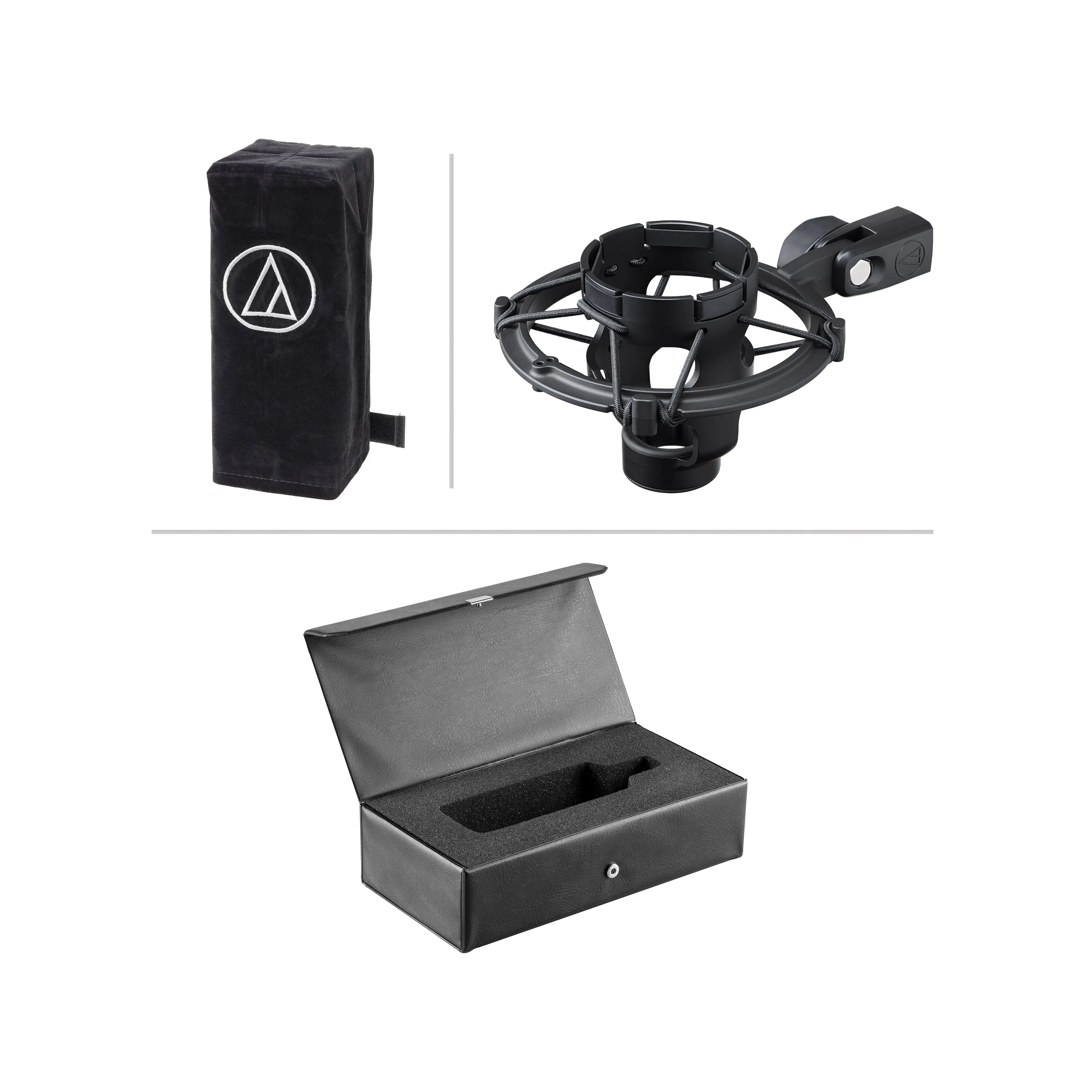

- Accessories: AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
- Case: Style R1
