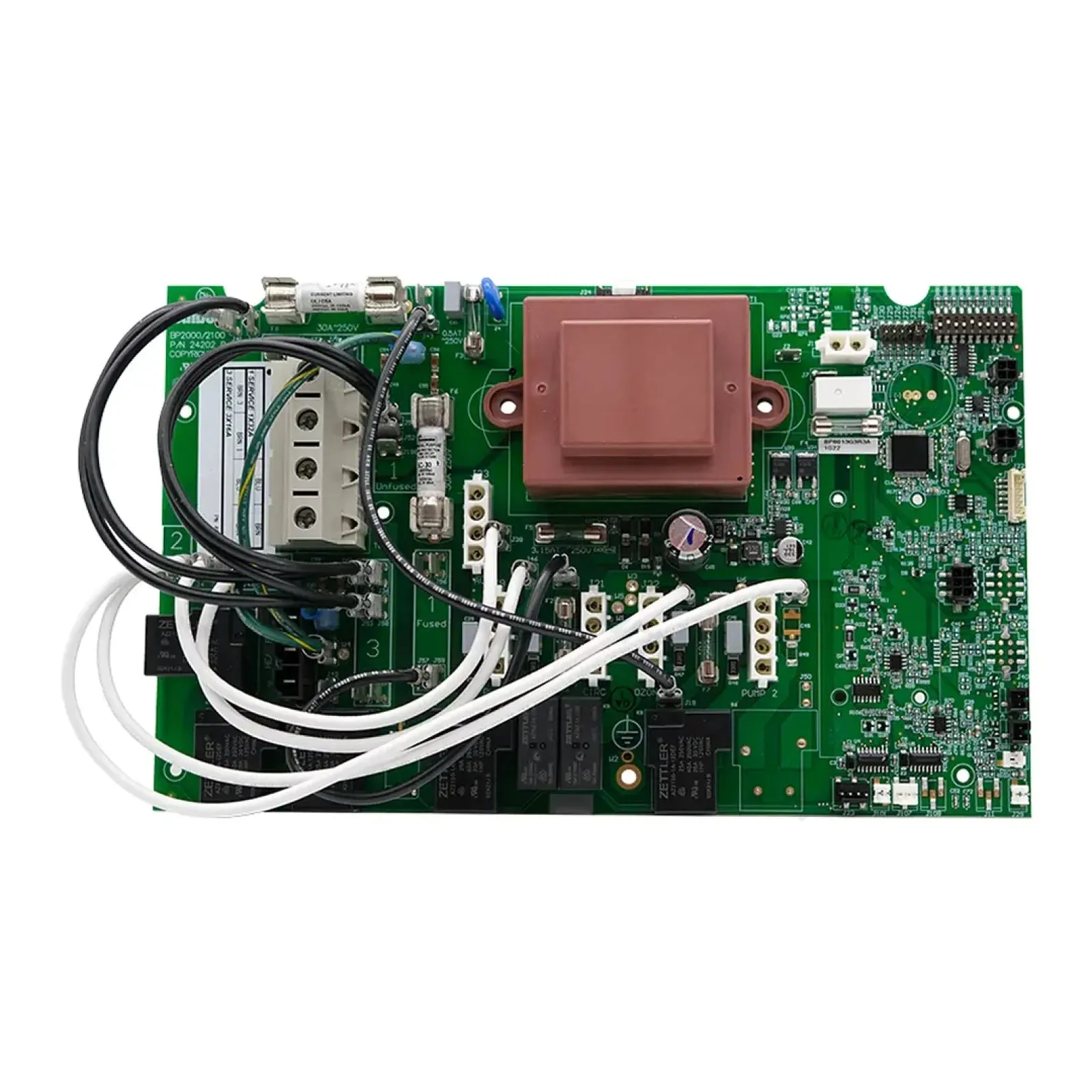

Balboa BP6013G3 Printed Circuit Board. Supersedes 56835-02.
BP6013G3 230V Output Sockets:
- CPUMP: Circ pump (must have a circ pump if pump 1 single speed)
- PUMP 1: 1Spd Pump or 2Spd Pump
- PUMP 2: 1Spd Pump
- PUMP 3: 1Spd Pump
- Blower: Blower
- 240V: This outlet has a constant 240volts and is not switchable
- O3/UV: This outlet is only to be used with an ozone system
BP 601 3 G3 Low Voltage:
- 2 x Touchpad Outlets
- 1x AUX Outlet
- 1 x Light
- 1 x Wifi Port
