This custom hand made prototype guitar is part of my 25th anniversary and is my homage to the man Les Paul. It has a chambered body traced straight from one of my LP specials and made from high quality solid Queensland pine laminate. The neck is also made from the same laminate with a rosewood 24 fret fretboard with zero fret.
The body contains hand made Tym low output pickups and effects with an active HP/LP filter and a Savage Toecutter running off a single 9V battery located under the small scratchplate under the pickups. See below and/or check my for full specs.
ALL PROCEEDS FROM THIS GUITAR WILL BE SPLIT BETWEEN
THIS IS A SILENT AUCTION ENDING AT MIDDAY 4TH MARCH 2022. THIS GUITAR IS SOLD. MORE COMING WHEN I GET TIME.

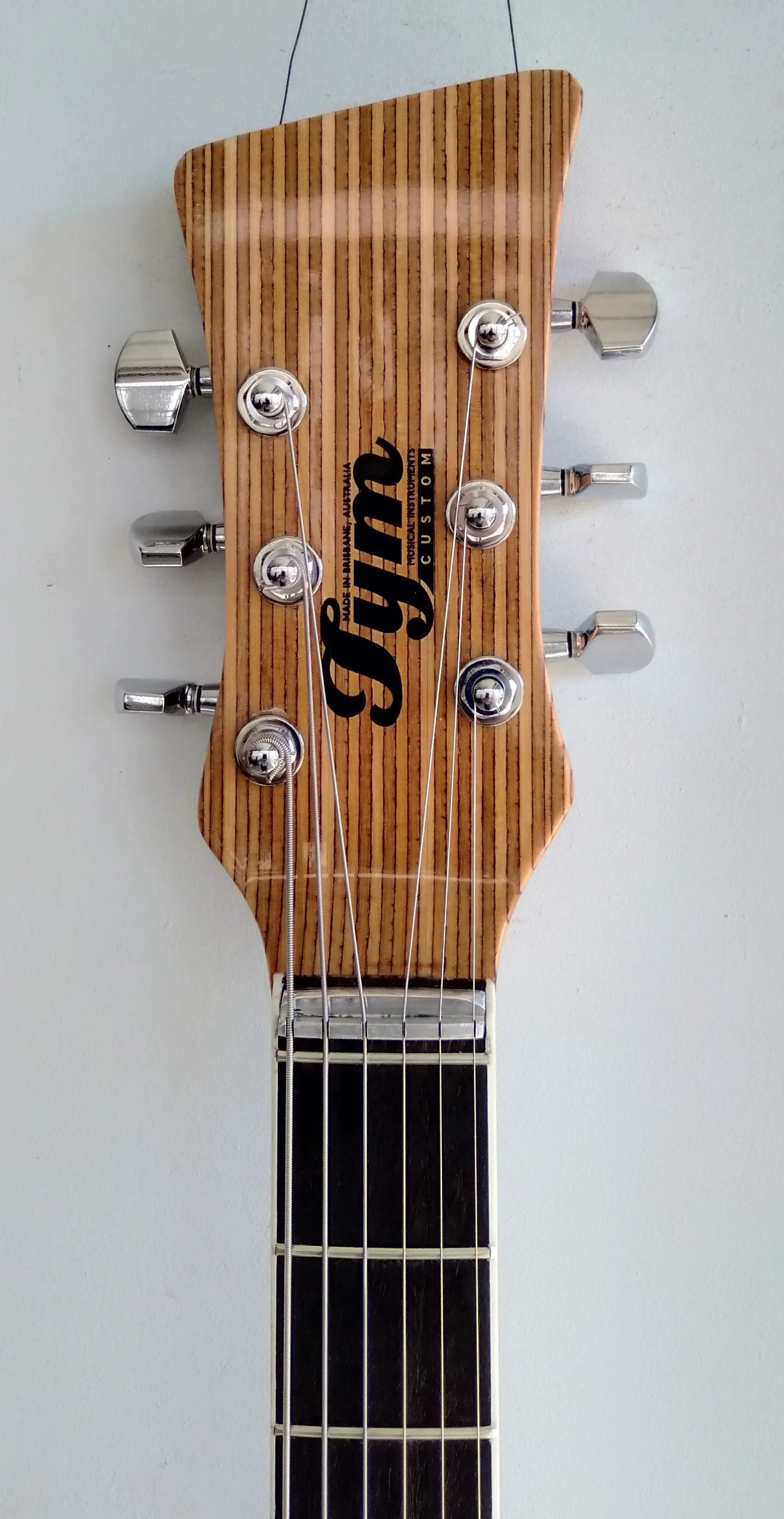

NECK:
High quality pine laminate.
Indian rosewood fretboard.
24 medium frets with zero fret.
Large volute.
6 bolt neck with long tenon.
Bound with fret end binding.
Side dot markers.

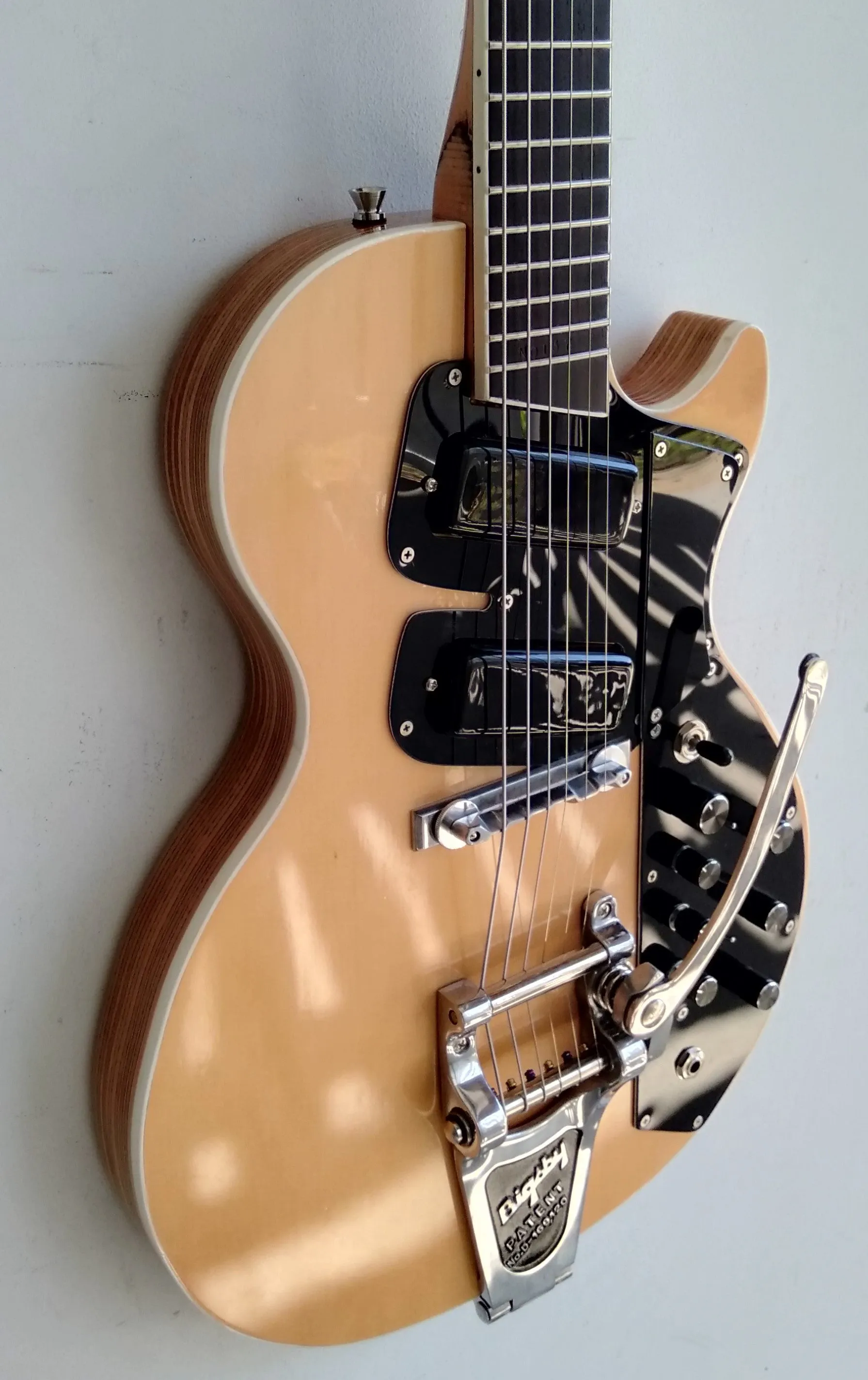

BODY:
Chambered high quality pine laminate.
Bound flat top.
ELECTRICS:
Custom hand made Tym low output single coil pickups with hand made covers.
3 way selector switch with humbucking in middle position.
Volume for each pickup with switchable master tone control.
Switchable HP/LP active EQ.
Switchable Savage Toecutter distortion circuit.
9V battery.
HARDWARE:
Gotoh sealed gear tuners.
Bigsby B7 tailpiece.
Tym Bigsby style bridge (modified)
Custom handmade aluminium string guide.
Standard strap buttons.
Tym lightweight aluminium neck plate.
FINISH: Amber tinted acrylic lacquer.
SCALE: 25.5"
STRING SPACING: Zero fret: 34mm. Bridge: 49mm
FRETBOARD RADIUS: 12"
PICKUPS: Neck: 4K blade style with 4 alnico 5 bar magnets. Bridge: 4K blade style with alnico 5 and C8 bar magnets.
STRINGS: Tym 10-52
WEIGHT: 3.5KG
SERIAL NUMBER: 137
WITH HARDCASE
