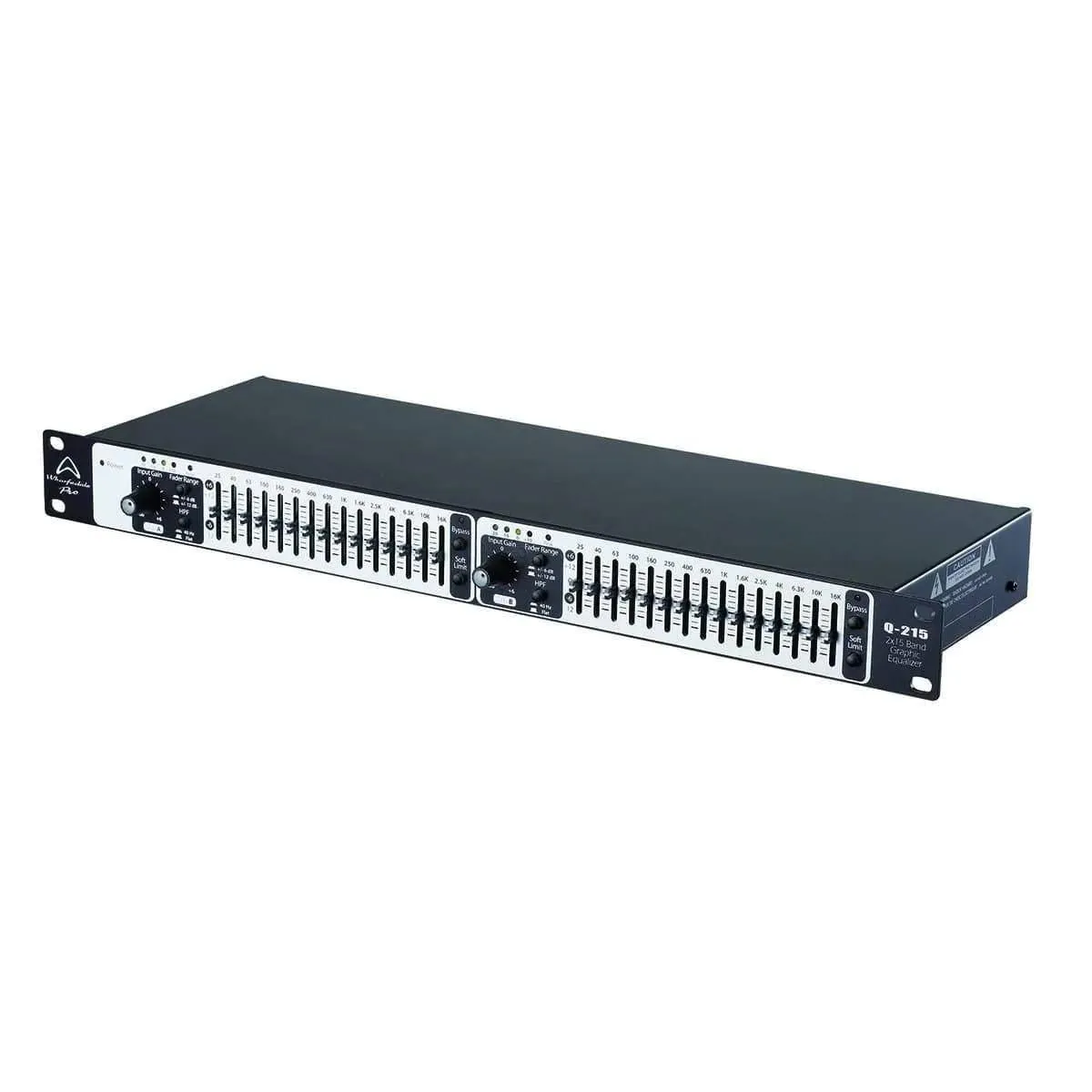

The Q Series equalizers have been designed for complex tonal correction and elimination of feedback on difficult acoustic environments, suitable for improving the intelligibility of an installed system, or taming feedback in a portable live sound reinforcement system. The Q-215 is a dual-channel, constant Q, 15 band equalizer.
FEATURES
- Constant Q Filters
- Professional long throw slide faders
- Switchable 6dB / 12dB fader range
- Switchable 40Hz 12dB/Oct HPF
- Switchable bypass with LED indicator
- Sweepable 40Hz -100Hz 12dB/oct HPF
- Built in soft limit protection

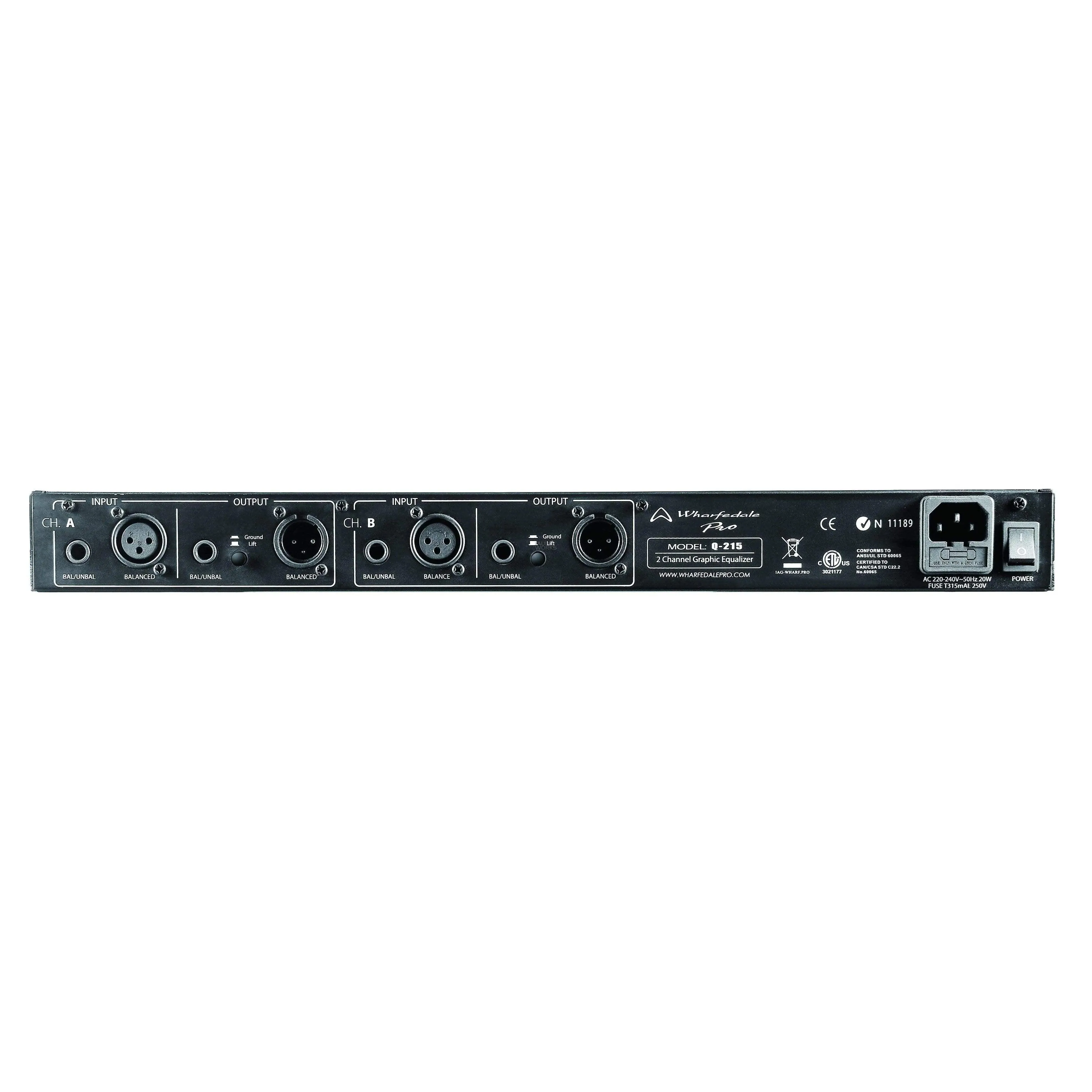

- XLR/ 1/4" jack inputs / outputs
- Ground lift switch
- 4 Segment level and clip LED display
SPECIFICATION
| Weight | 2.96kg |
| Dimensions | 482.6mm x 168mm x 44mm |
| Dynamic Range | 108dB |
| Frequency Range | 20Hz - 20kHz |
| Inputs | 2 x XLR, 2 x 6.3mm Jack |
| Low Cut Filter | 50Hz 12dB/Oct HPF |
| Outputs | 2 x XLR, 2 x 6.3mm Jack |
| Signal-to-Noise Ratio | 90dB |
